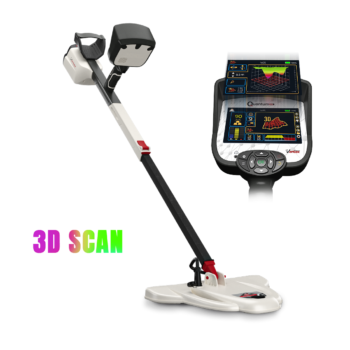

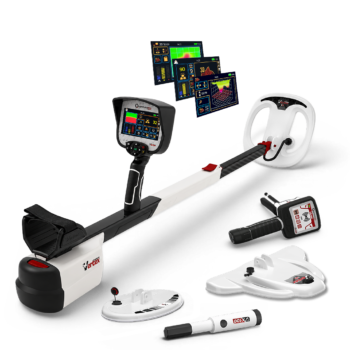

Distance Quantum VX900 Features

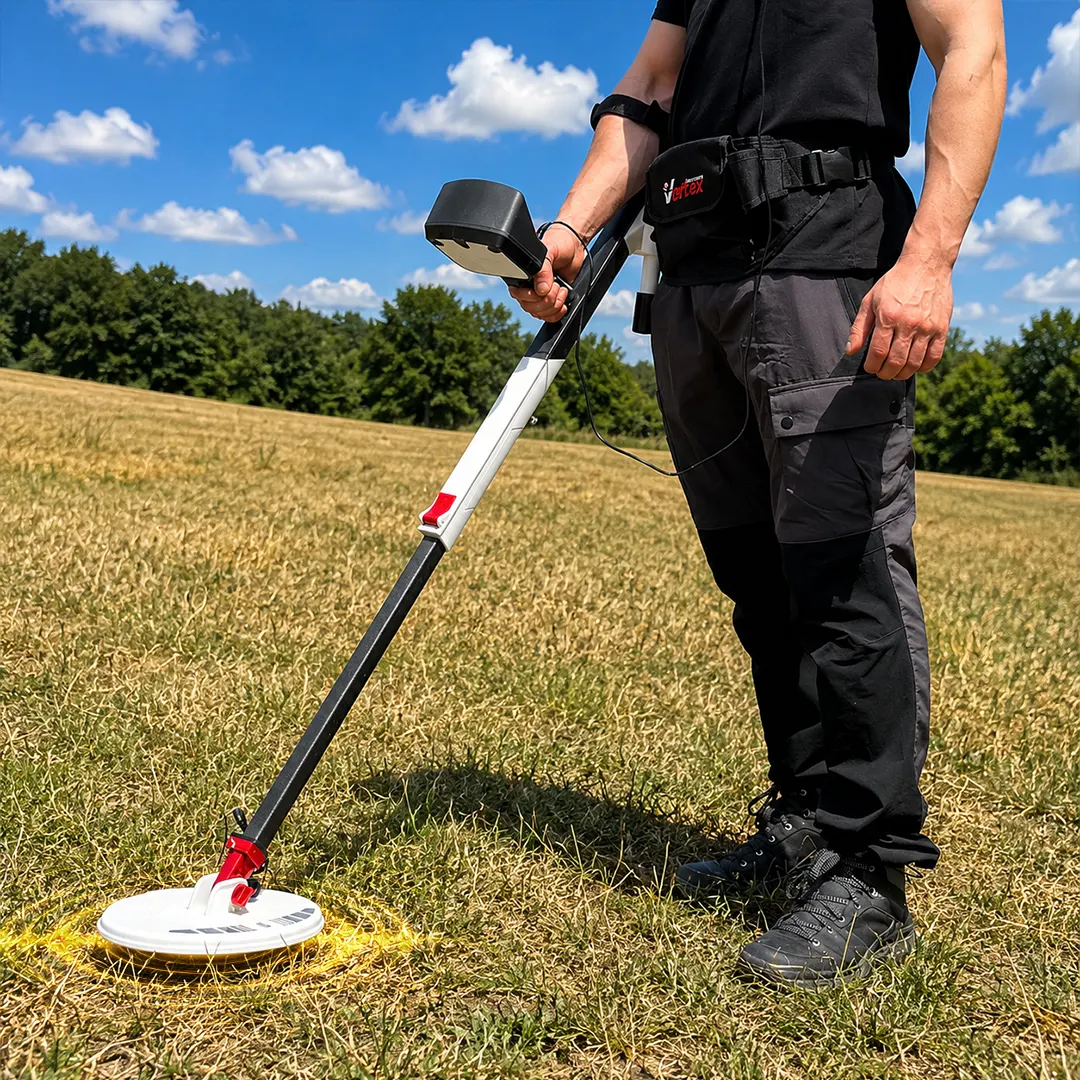

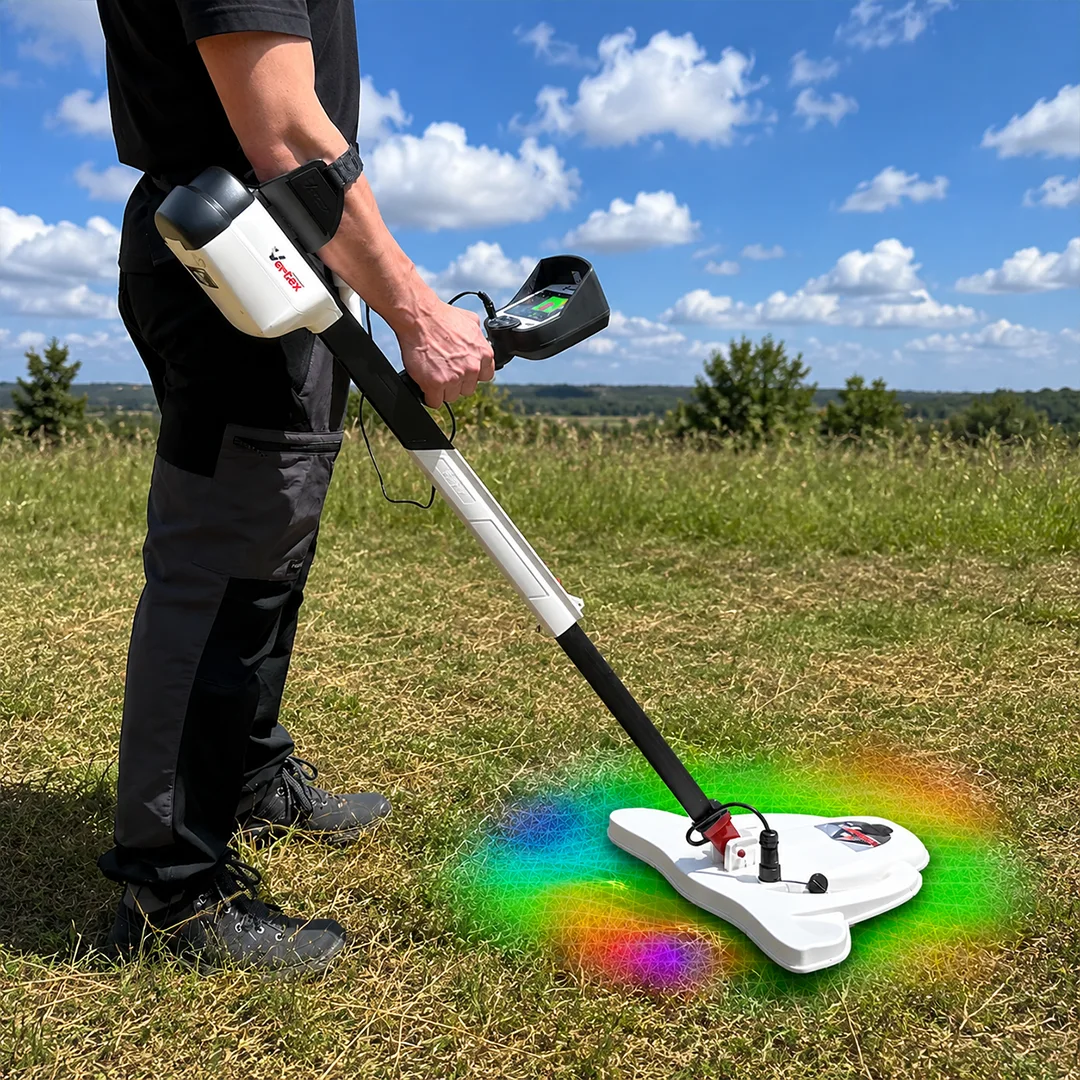

Active Sensing Unit ASU-V35 - Quantum VX900
The Active Sensing Unit ASU-V35 is used within the Quantum VX900 system to enhance the accuracy of ground scanning and document motion and location data.
The unit relies on integrated sensors to monitor the movements of the search coil along the horizontal and vertical axes (X, Y, Z), while recording the real-time geographic location and the coil's height above the ground during scanning.
The main functions of the ASU-V35 unit include:
- Determining the precise coordinates of the start and end points of the scanning path.
- Drawing the boundaries of the scanning area and displaying the movement path within the graphical map.
- Accurately measuring the dimensions of the scanned area (length X width).
- Analyzing data to extract the target’s depth and geometric shape.
- Providing three-dimensional data to represent the target’s volume and dimensions in the subsurface space.
The ASU-V35 unit features real-time data processing and transmission to the device’s display and control unit, enabling the generation of accurate imaging maps without the need for additional equipment.
High-Efficiency Battery:
- Long-lasting operation time.
- Fast charging via Type-C port.
- Supports backup batteries for emergency situations.

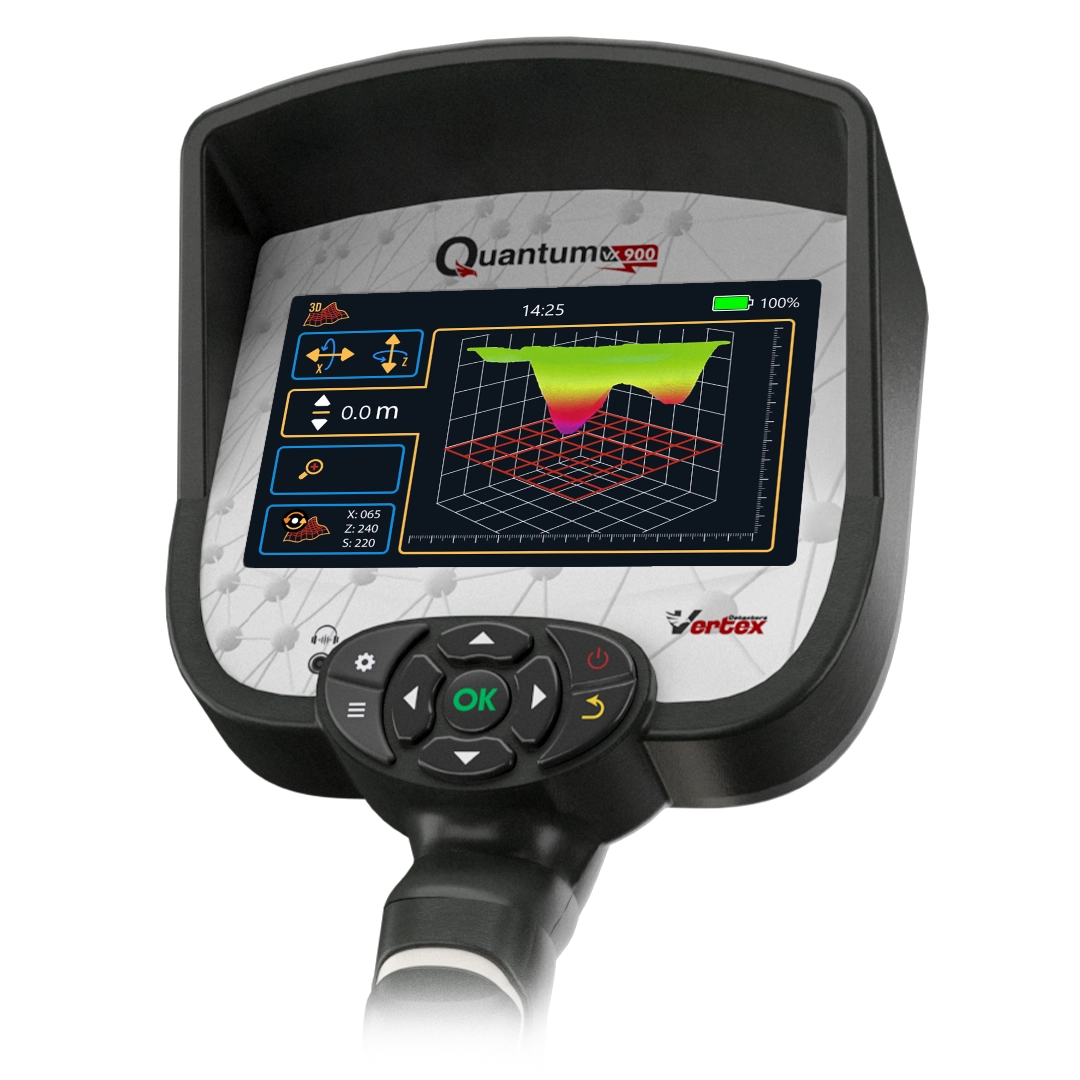

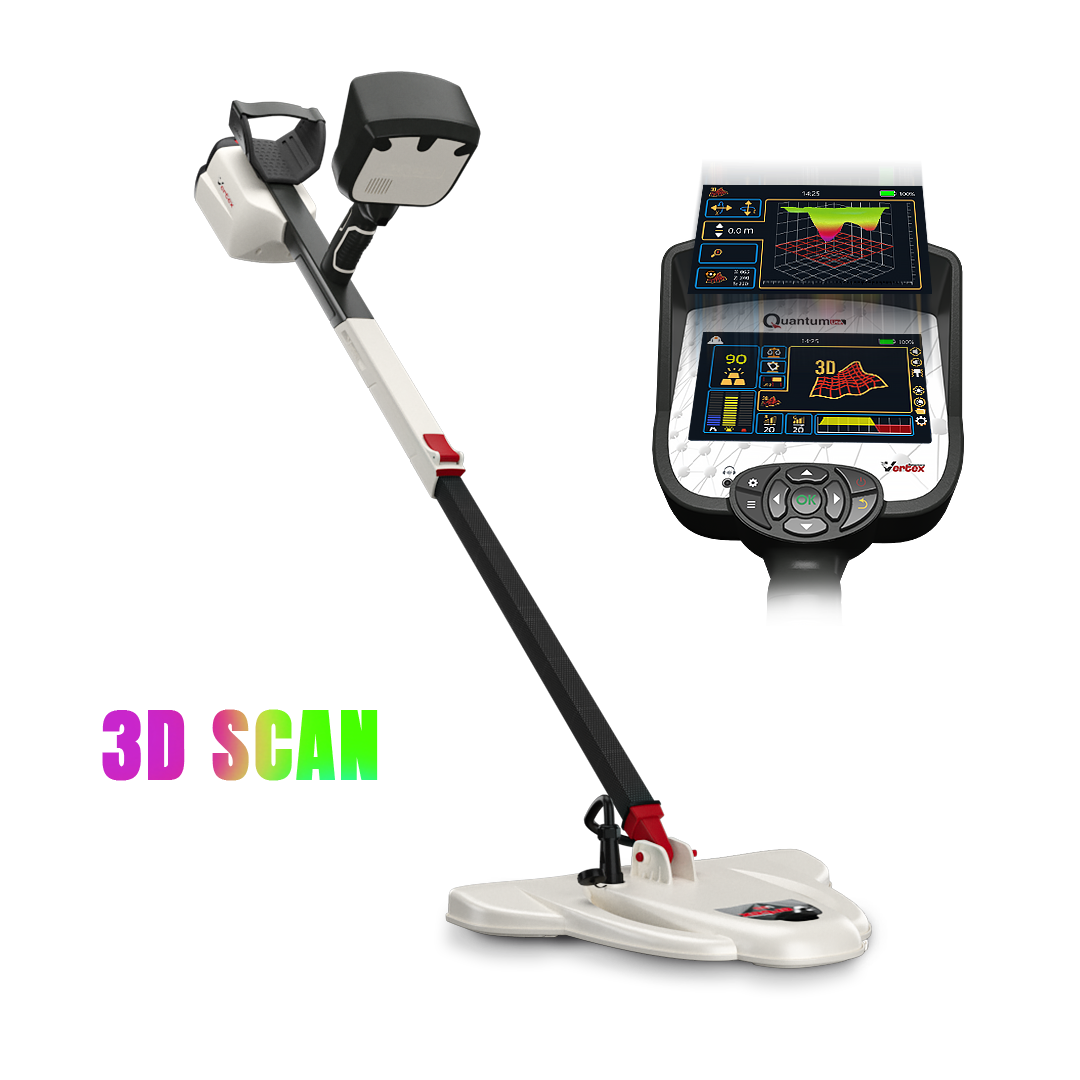

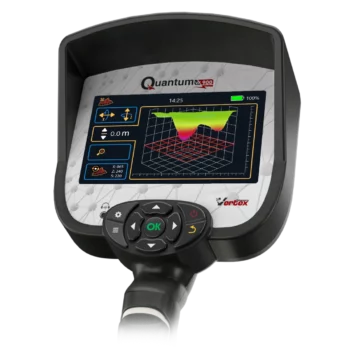

Ultra-High-Resolution Display:
Sunlight-readable visual interface that provides a flexible and comfortable user experience.
Professional Design Resistant to Environmental Conditions:
Constructed from durable materials that withstand shocks, moisture, and varying temperatures—suitable for use in harsh conditions.
Smart, Multi-Language Operating System:
Includes an Arabic-language interface, easy to use for all types of users, whether professionals or beginners.
Depth Exploration Capabilities:
The device’s depth reach varies depending on the unit used:
- Up to 18 meters for channels and tunnels using the ASU V35 unit.
- Up to 15 meters for metal detection using the Active Sensing Unit.
- Up to 4 meters for metals using the V25 coil.
- Up to 2 meters using the V10 coil for small targets.
Smart Detection and Analysis Systems

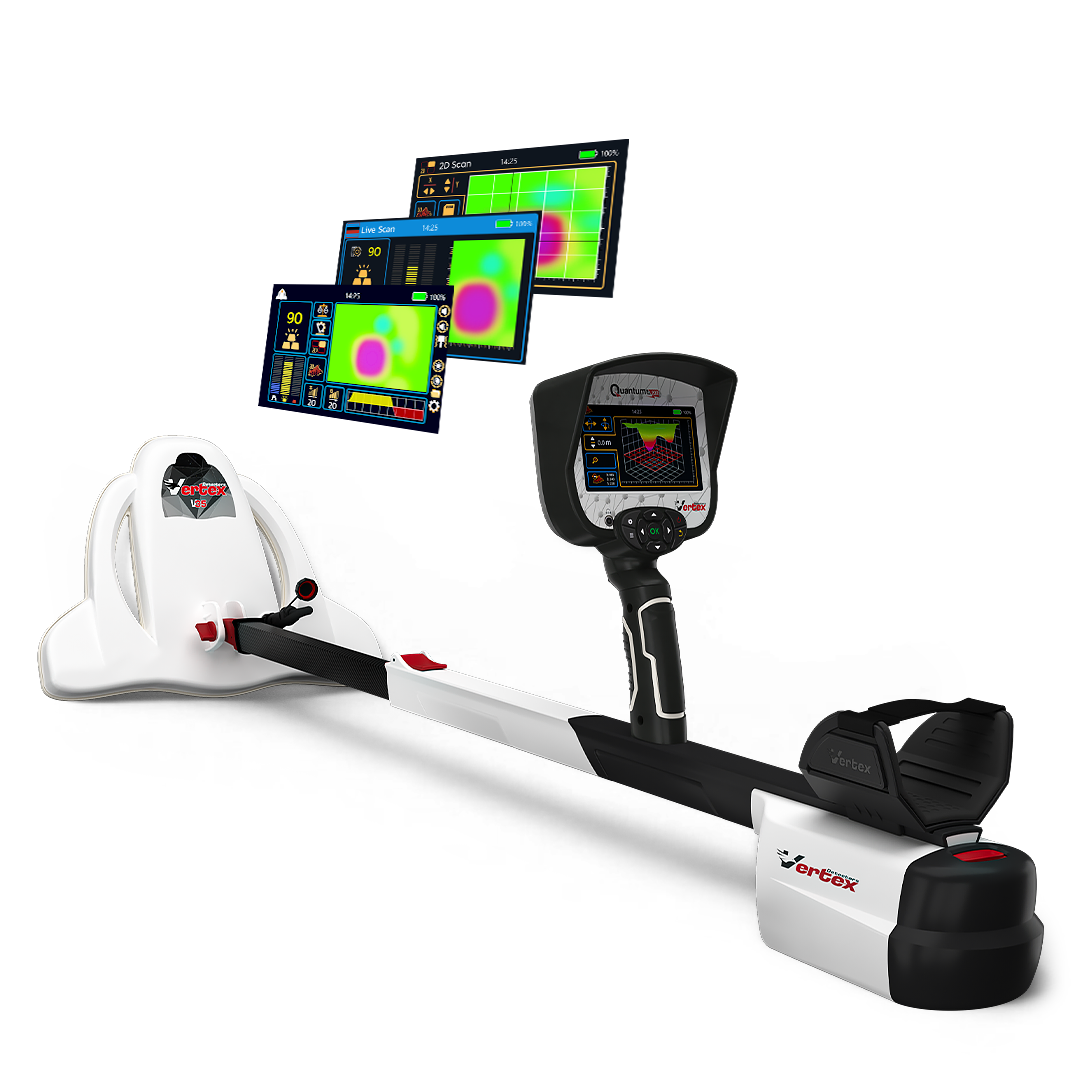

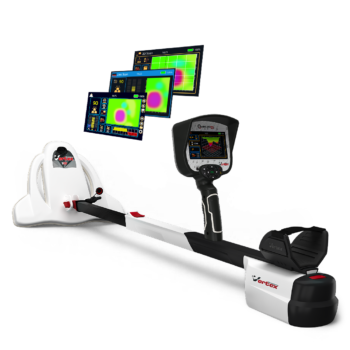

1. Ground Imaging System – Active Sensing Unit (ASU V35)
This unit features advanced 2D and 3D imaging capabilities, allowing for clear visual representation of metal structures and underground cavities.
- Identification of geometric shape and measurement of actual depth.
- Advanced inspection tools for analyzing the nature of detected targets.
- Possibility of testing metals without the need to bury samples.
2. High-Performance SFX System – with V10 and V25 Search Coils
A specialized system for deep and precise detection, capable of distinguishing between precious and non-precious metals, with exceptional location accuracy.
Search Accessories:
- V10 (12x8 inches): Ideal for detecting medium and small-sized targets.
- V25 (12x12 inches): Suitable for larger objects and greater depths.
Technical Features:
- High response speed.
- Automatic ground balancing system.
- Accurate target localization.

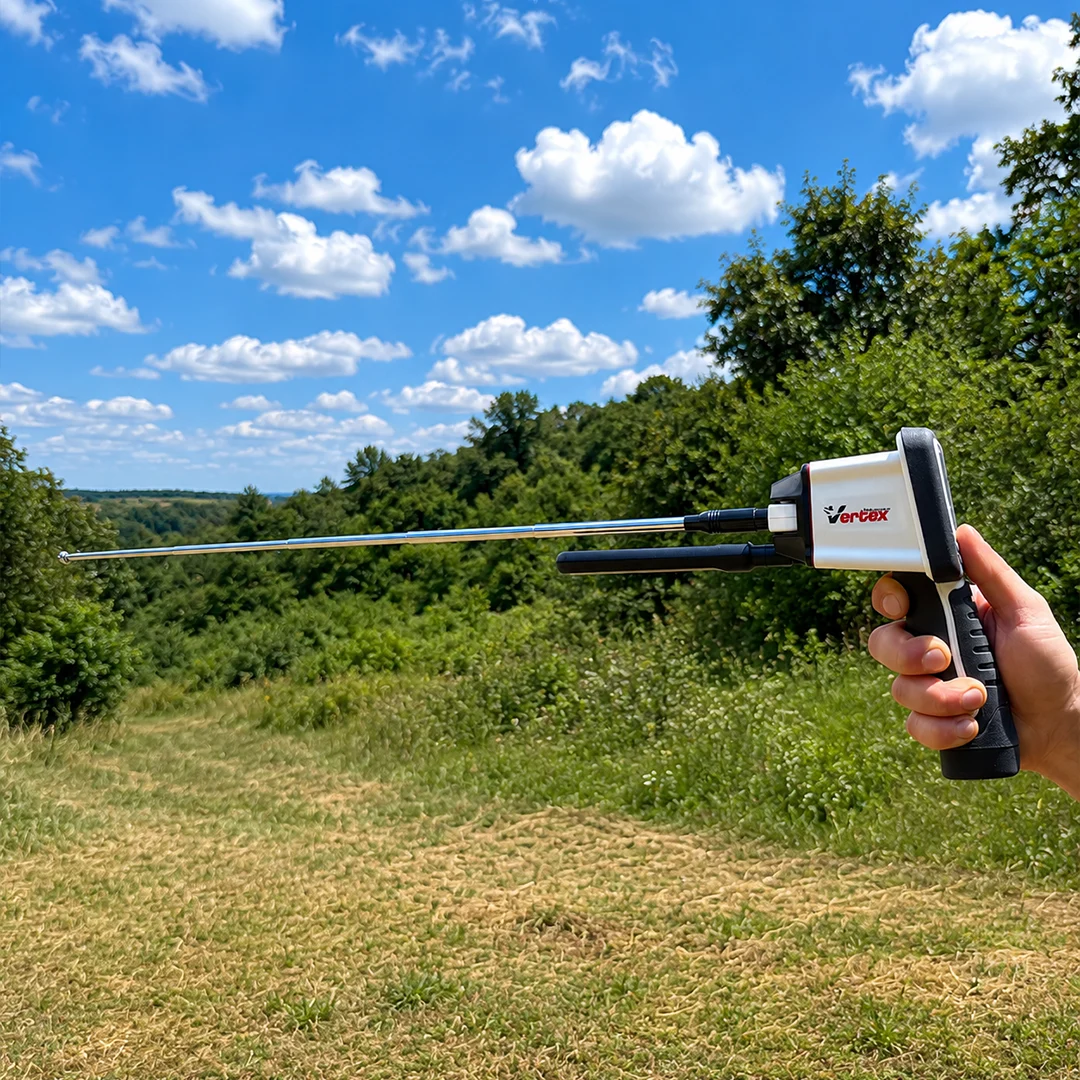

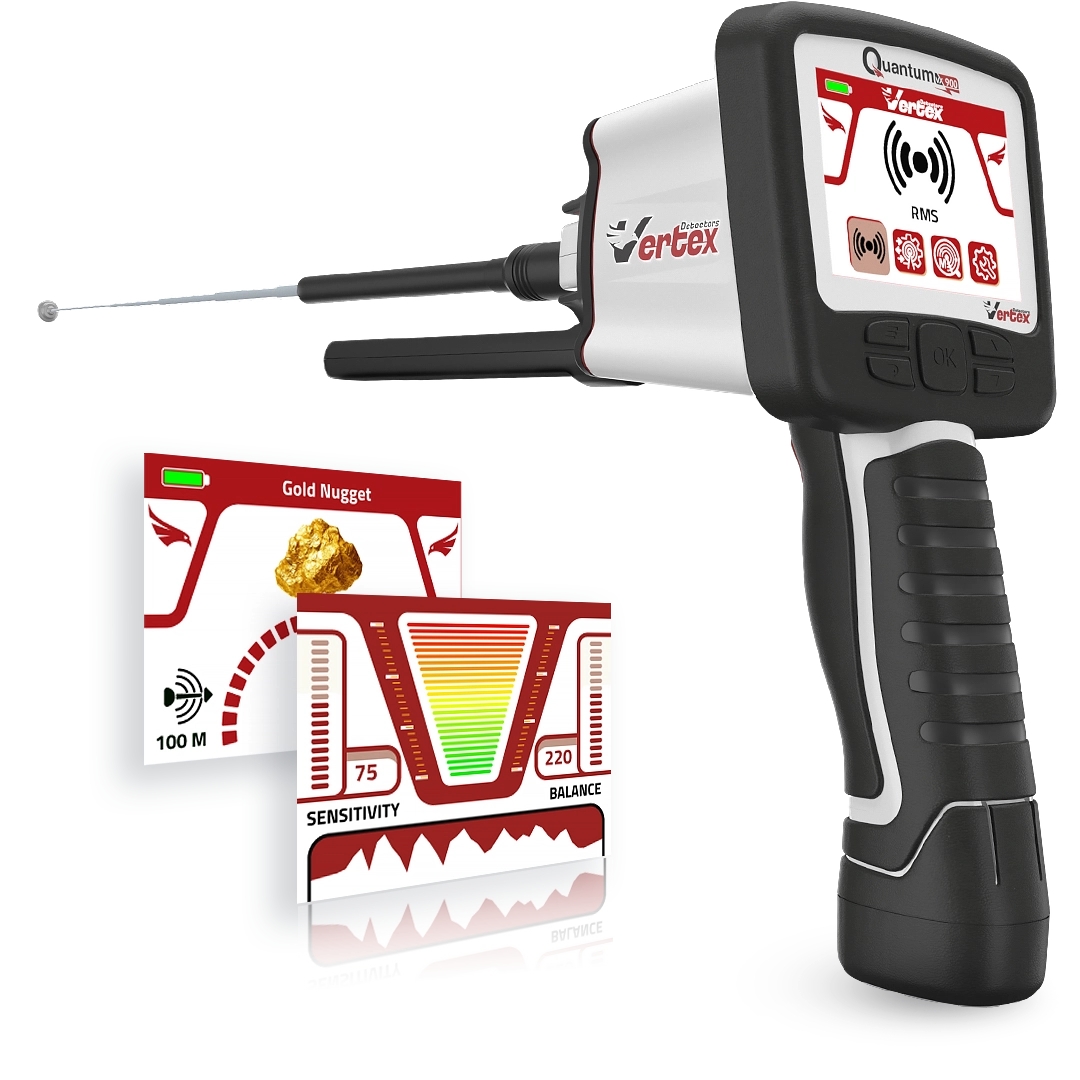

3. RSPU Unit – Multi-Technology Sensing and Analysis Platform
This unit uses advanced physical and digital analysis technologies to expand the detection range and precisely identify targets, even in difficult areas. It includes the following technologies:
- RMS – Electrostatic Analysis:
- Passive Mode: Captures natural signals without transmitting frequencies – ideal for humid environments.
- Active Mode: Emits stimulating frequencies to enhance results in dry areas.
- ADRI – Physical Resonance Technology:
- Geological analysis using artificial intelligence to identify voids and metals.
- Target tracking and final location determination.
- MDRI – Professional Manual Settings:
- Input of custom settings such as target type and depth.
- Direct frequency targeting to accelerate results and reduce search time.
Unit Capabilities:
- Detection depth up to 25 meters depending on target size.
- Search area coverage up to 2500 square meters with real-time underground variation analysis.

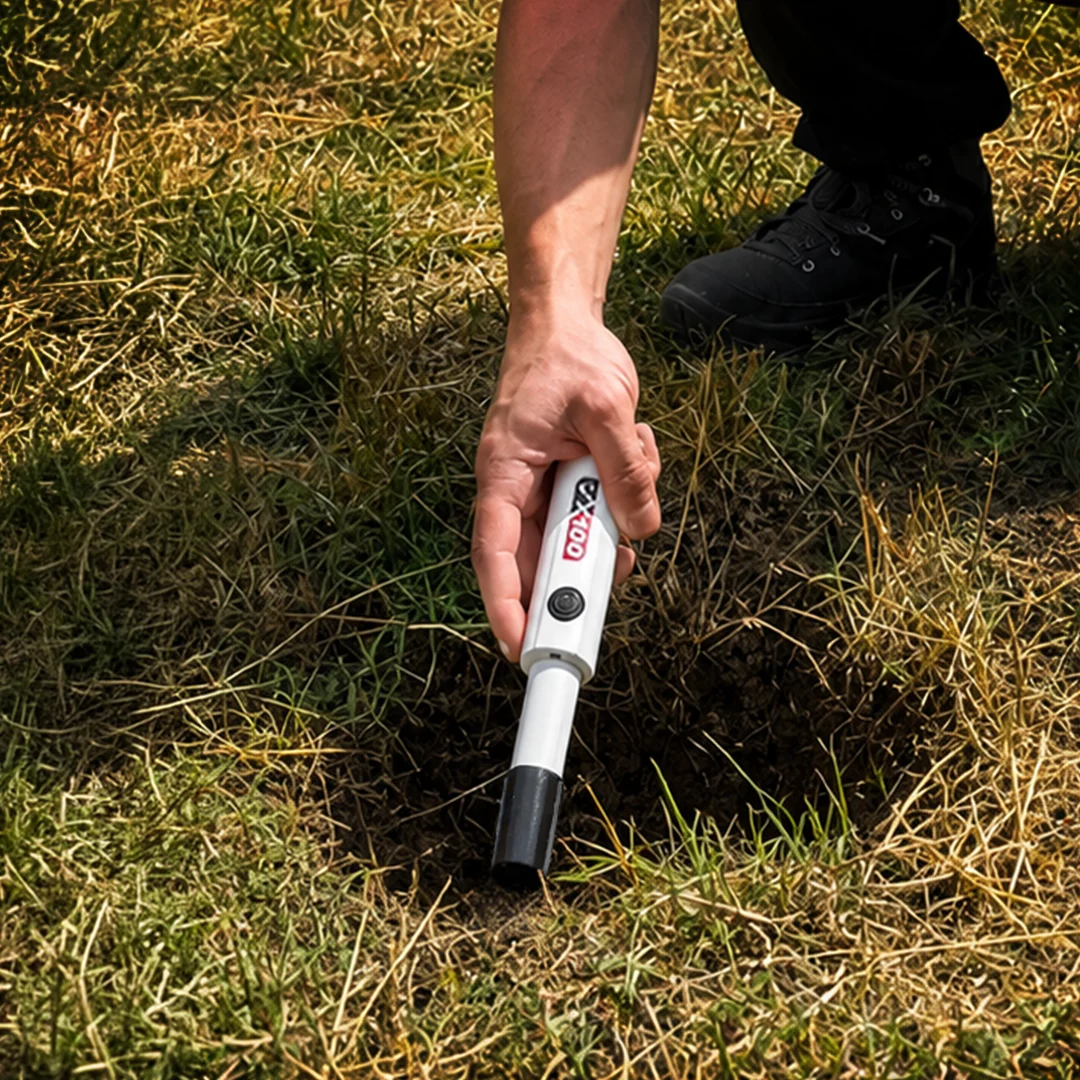

4. Pinpointer Tool (VX100)
A field-assist tool designed to pinpoint the target location during excavation, especially for small objects, reducing error margins and saving time and effort.
| Category | Specifications |
| Operation Principle | Signal analysis, data processing, and conversion into visual and audible results |
| Processing Type | High-Performance ARM CORTEX M7 |
| Display Screen | TFT Color Display, 5 inches, 480 x 800 WVGA |
| Battery | Lithium-ion, detachable, 12.6V / 3500 mAh |
| Power Consumption | 600 mA (average) |
| Battery Runtime | Over 6 hours of continuous operation |
| Charger | Type-C – PD 65W |
| Detection Audio | Interactive frequency sound technology |
| Control Audio | High-quality mono sound |
| Languages Supported | English, French, German, Spanish, Italian, Russian, Arabic |
| Weight (Device + Accessories) | 8.830 kg |
| Weight (Device + V10) | 2.5 kg |
| Weight (Device + V25) | 2.9 kg |
| Weight (Device + V35) | 3.0 kg |
| Dimensions (With Packaging) | 18 x 42 x 82 cm |
| Dimensions (Without Search Tools) | 82 x 39 x 13.5 cm |
| Active Sensing Unit ASU | V35 ground imaging sensor, dimensions: 13 x 17.5 inches |
| Supported Search Coils | V10: 8 x 12 inches V25: 12 x 12 inches |
| RSPU Unit | Multi-detection technology from long distances |
| VX100 Unit | Designed for precise searches |
| Operating Temperature | 10°C to 60°C |
| Storage Temperature | 10°C to 80°C |
